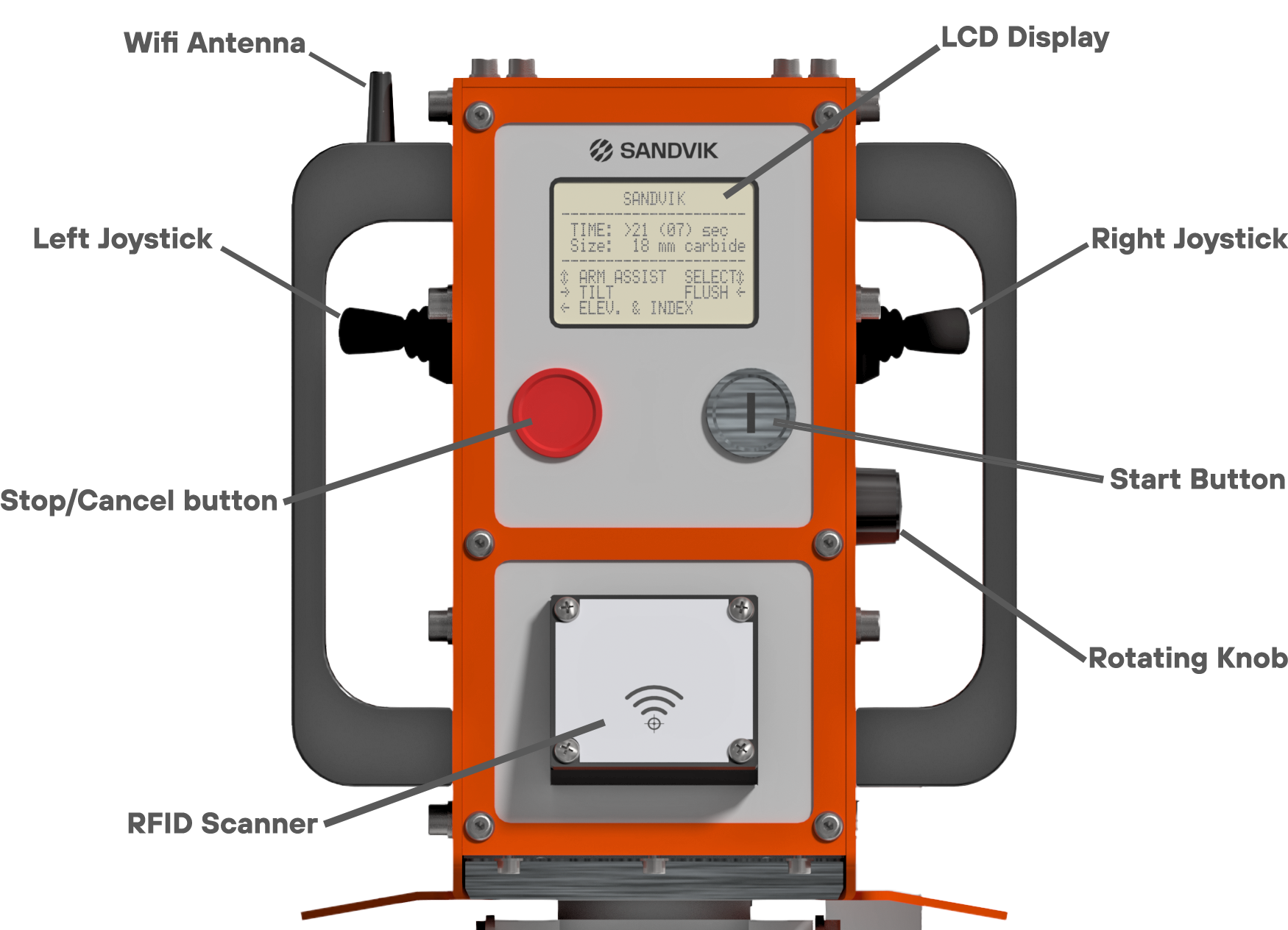

The machine is operated by use of the LCD display, two (2) joysticks, rotating knob and start and stop buttons on the control panel.



There are two general pages which give you all the functionality to operate your Sharpener

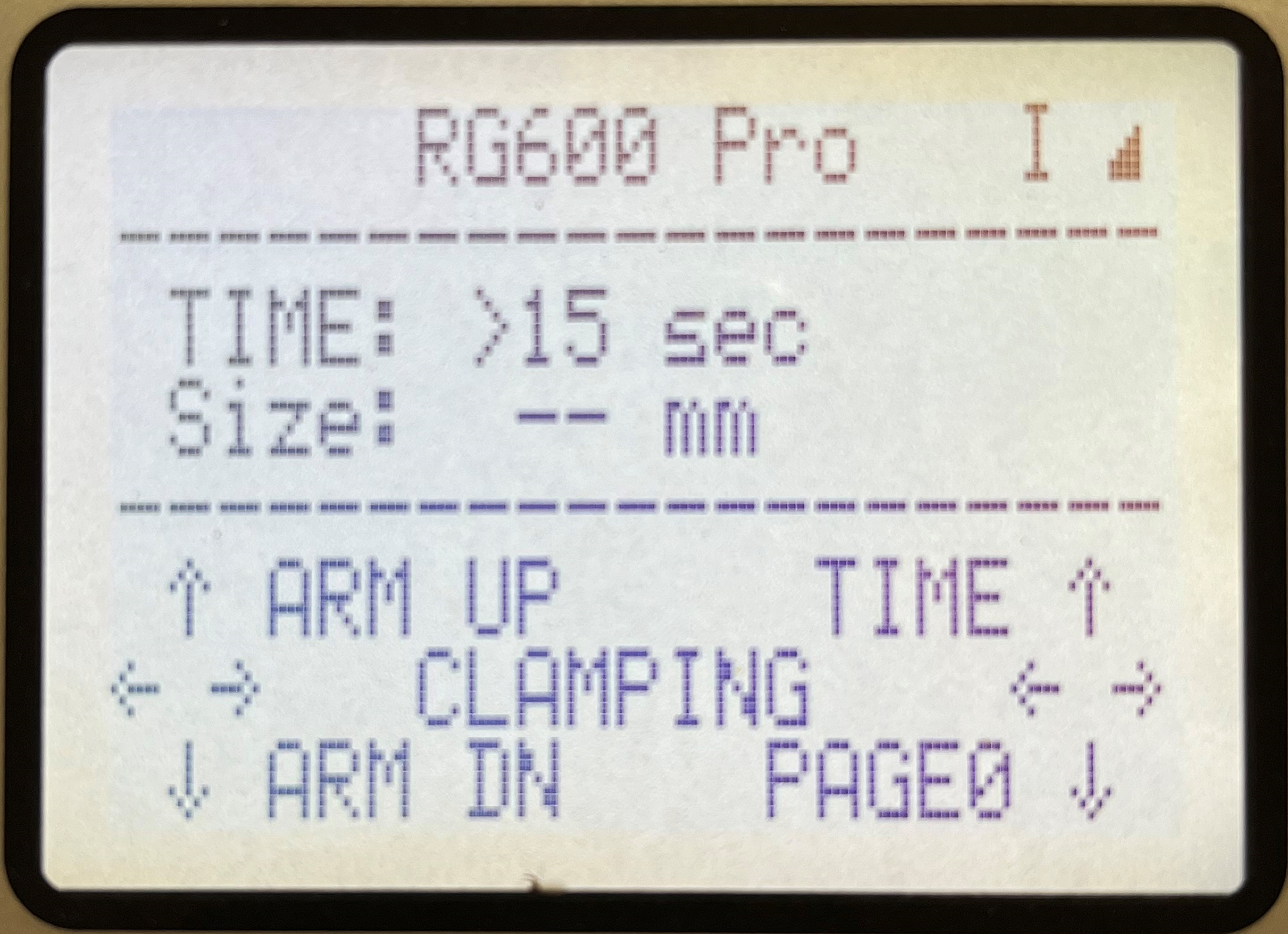

Page 0

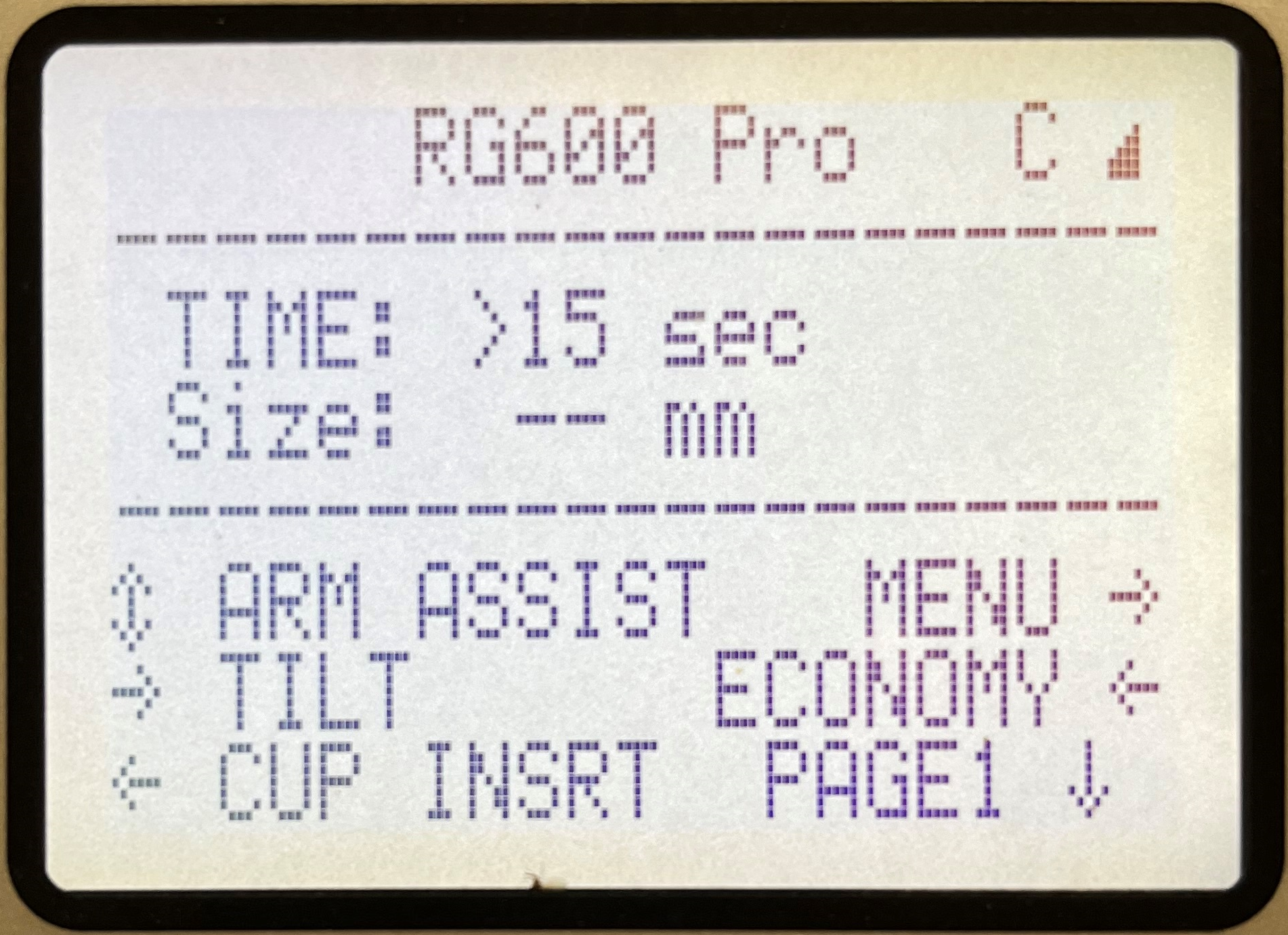

Page 1

We recommend your machine be connected to a Wifi network at all times.

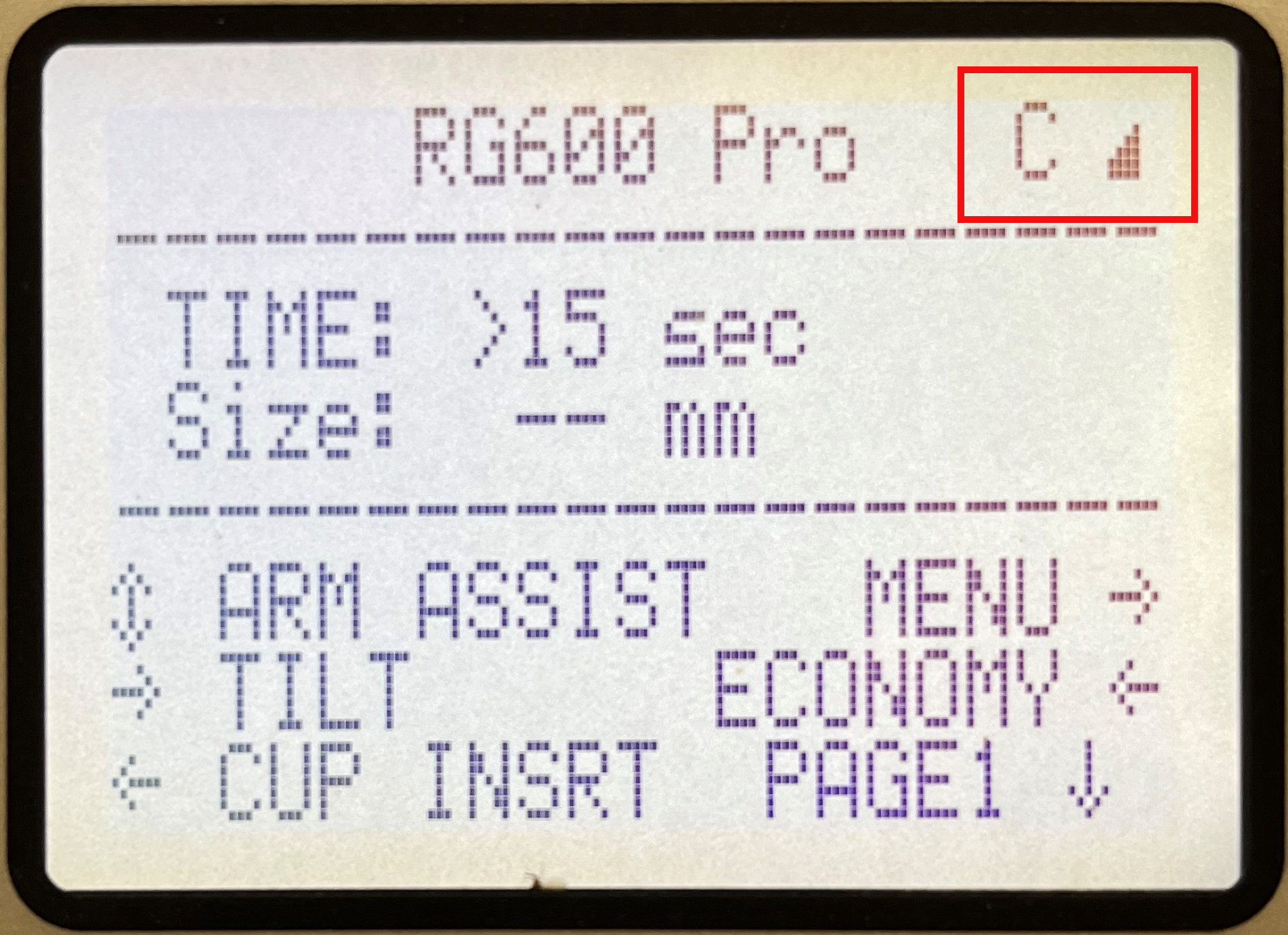

When the machine is connected, the Wifi symbol will appear in the top right hand corner of the display

There will also be a letter: either an "I" or a "C"

"I" = connected to Wifi

"C" = connected to server for synchronisation

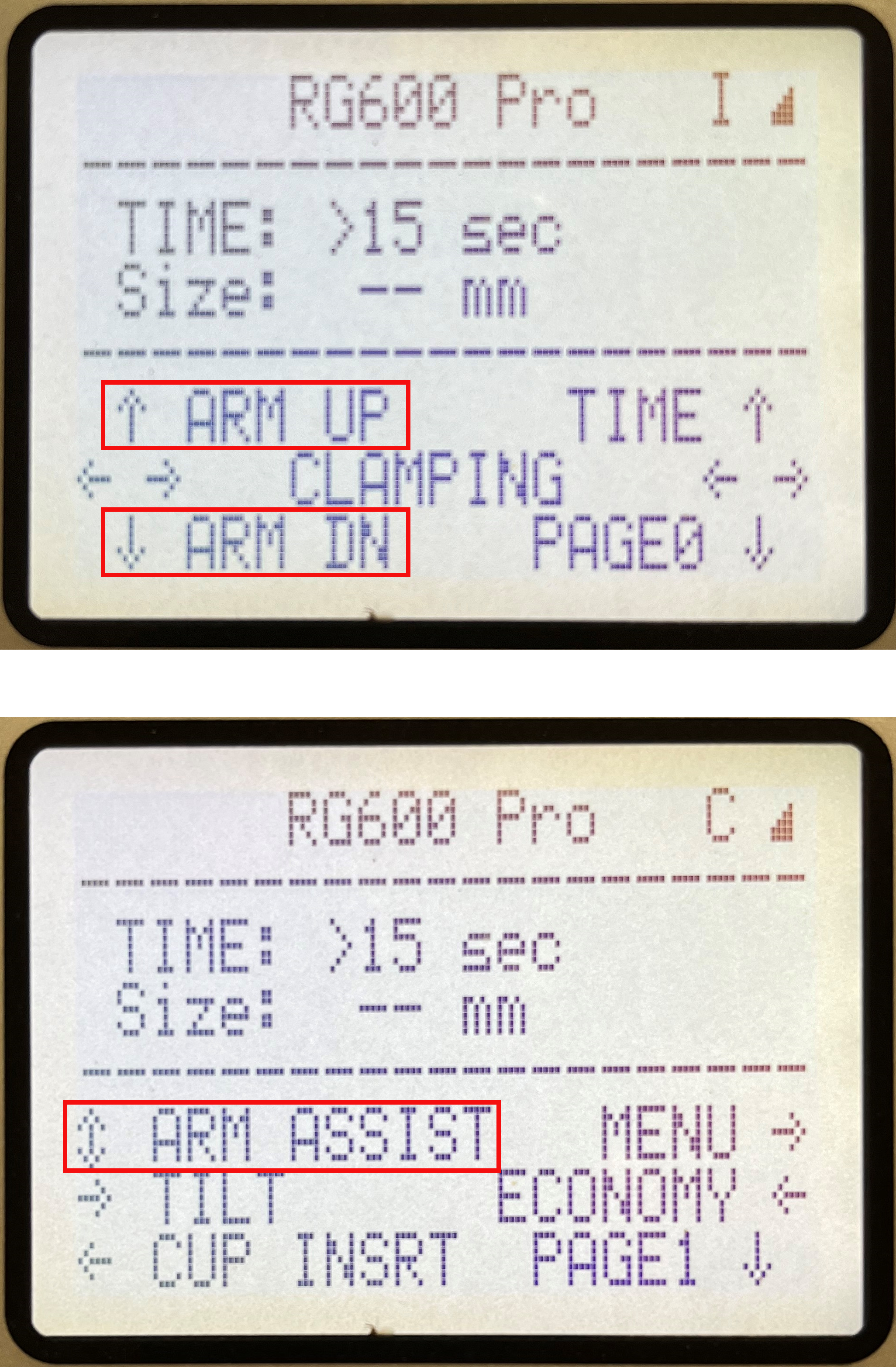

That arm can be moved up and down by pushing the Left Joystick up or down respectively. This can be done in both page 0 and page 1.

Since the arm is balanced using the pneumatic cylinder, the control panel can also be moved up and down by gripping the handles and gently pushing/pulling the control panel up and down.

The functions are:

Connecting the machine to Wifi

Moving the arm up and down

Tilting the bit table

Clamping the bits

Setting normal and extra sharpening time

Switching between ECONOMY and PERFORMANCE modes

Service menu used for troubleshooting

Operator card and Sharpening cups RFID scanner

Error / Warning / Info codes
